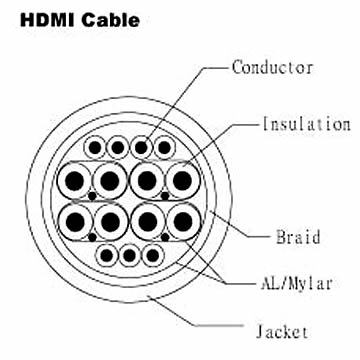

HDMI - UL 20276

規格特性

• Rating : 60°C or 80°C, 30 V.
• Insulated : No. 40 AWG minimum. Labeled or complying with AWM
• Conductors : Procedure having a minimum rating of 60°C or 80°C whichever is applicable.
• Assembly : Consists of two or more conductors, twisted pairs, parallel pairs, or groups of twisted conductors or
• parallel pairs twisted together. The conductors or groups of conductors may be laid parallel forming a flat, oval or
• round cable. The lay of the insulated conductors are not specified. A barrier layer and/or fillers are optional.
• Manufacturer shall maintain a complete description of each assembly. May use same or mixed AWG size.
• Covering : (Optional.) A 6 mil or heavier PVC covering may be extruded over the conductor assembly.
• Shield : Optional.
• Jacket : PVC, Class 43.
• Standard : Appliance Wiring Material UL 758.
• Use : Construction A - Internal wiring or external interconnection of electronic equipment in Class 2 circuits only.
• Construction B - Internal wiring of electronic equipment in Class 2 circuits only.
