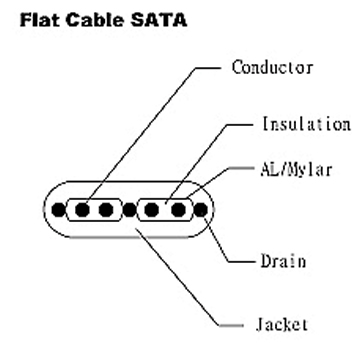

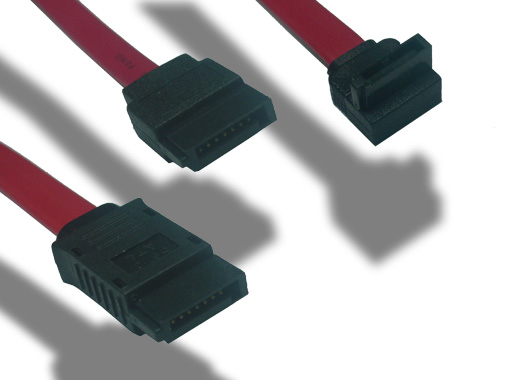

Flat Cable - SATA Flat Cable - SATA

  • Flat Cable - SATA Flat Cable - SATA

    規格

    • UL 規格：2725 21149
    • 導體尺寸：26AWG 28AWG & 30AWG
    • 樣式：組裝 & 成形


    測試條件

    • 額定電壓：30v
    • 額定溫度：80度
    • 特性阻抗：100+-10%
    • 電容：42 pf/m Normal
    • 傳播延遲：4.25 ns/M Normal
    • 衰減：-6 db/M Max At 3.0 GHz
    • 近端串音：-26 db/M Max At 3.0 GHz
    • 同模阻抗：25~40
    • 線對間區配：5 Max
    • 差分對內延遲差：10ps Max
    • 上升時間衰退或頻寬：85ps Max
    • 耐壓強度：AC 500V No Break Down
    • 導通組抗：26AWG < 146/KM ; 28AWG < 237/KM

Please write down your comment on this product, and click Add to Inquiry List for inquiry
Add to Inquiry List
Review Inquiry List
Back
