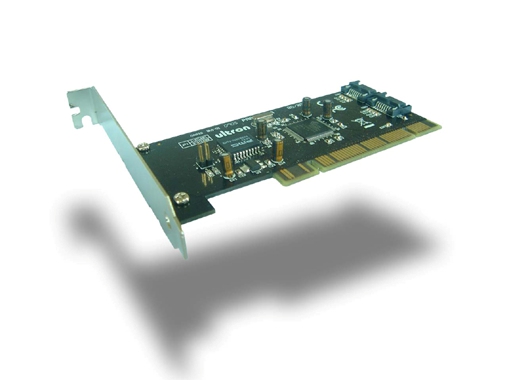

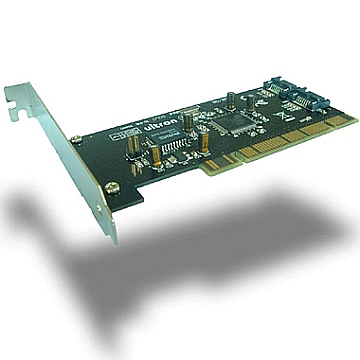

SATA RAID 2 Port PCI Host Adapter

Features

• Compliant with PCI Specification, revision 2.2.
• Two independent Serial ATA channels to support one Serial ATA device on each channel.
• Breaks Capacity-Limit to Support HDD larger than 137G.
• Dual high speed Serial ATA interface ports, each supporting 1st generation Serial ATA data rates 1.5Gb/s.
• Provides RAID 0 (Stripping) to greatly increase the performance of data transfer by simultaneously writing data to 2 drives.
• Provides RAID 1 (Mirroring) to protect the data from a disk failure by writing identical data on 2 drives.
• Supports Spread Spectrum in receiver.
• Independent 256-byte FIFOs (32 bit * 64 deep) per Serial ATA channel for host reads and writes.
• Integrated PCI DMA engines.
• 32 bit, 33/66MHz fully compliant PCI host interface.
• Complete with drivers for Windows 98, Windows Millennium, Windows NT 4.0, Windows 2000 and Windows XP
