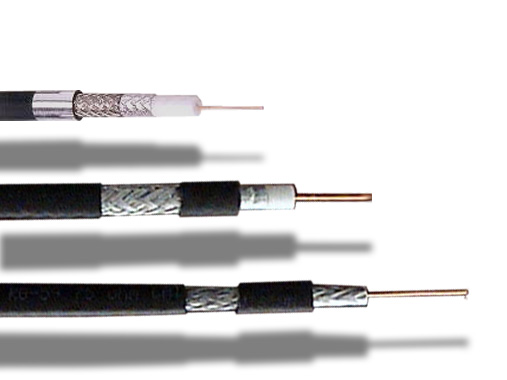

Coaxial Cable - UL1792

  • Coaxial Cable - UL1792

    規格特性

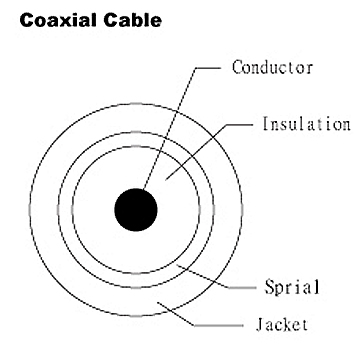

    • Rating : 80°C, 30 V.
    • Conductor : No. 40 AWG minimum, material not specified.
    • Insulation : FRPE, PE, or PVC, solid or cellular, 2 mils minimum at any point, 100 mils maximum. May be irradiated.
    • Inner Covering : Optional 2 mils minimum of - Extruded PVC, Polyamide, Thermoplastic Polyvinylidence Fluoride
    • Resin for Thermoplastic Copolymer of Ethylene and Tetrafluoroethylene or lacquered braid.
    • Shield : Optional.
    • Outer Covering : Optional - Extruded PVC, 7 mils minimum.
    • Standard : Appliance Wiring Material UL 758.
    • Use :Internal Wiring of Electronic Equipment in Class 2 Circuits only.
